Product Description

The ECO850LCD ultra-compact green UPS offers complete protection from blackouts, voltage fluctuations and transient surges. Interactive LCD user interface offers detailed UPS and site electrical data, including input/output voltage, estimated runtime remaining, load percentage, load wattage and battery charge level. Energy saving ECO outlets give users the option to automatically power off unused desktop accessories like a printer and audio speakers as the computer connected via USB goes to low-power sleep or shutdown modes. 99% full load efficiency rating offers energy savings and cool operating temperatures. Green design meets strict RoHS environmental standards. Space saving, ultra-compact desktop or wall mount compatible housing. Includes 6 battery supported outlets for computer, monitor and four vital system accessories, plus 6 additional surge suppression-only outlets for accessories not requiring battery support. Four surge-only outlets marked "ECO" can be configured to automatically power-off within 3 minutes of the connected computer entering sleep or shutdown mode. USB port monitors computer power status for ECO power savings and enables direct integration with built-in power management and auto-shutdown features of Windows and Mac OS X. USB cable included. Built-in single line RJ11 phone suppression protects modem, fax machine, cordless phone or other accessories with a dial-up/DSL phone connection. Built-in interactive LCD screen offers continuous power and UPS status information. Audible alarm warns of power failure conditions. Self-test, display brightness, alarm disable and LCD information display scrolling options are controllable via interactive LCD user interface. 850VA / 425 watt UPS capacity supports entry-level PC systems for up to 45 minutes during power fail conditions. 3 year warranty. $100,000 connected equipment insurance (USA, Puerto Rico, & Canada Only).

From the Manufacturer

Now you can protect your valuable electronics, save money on your utility bill and be kind to the planet! Tripp Lite's ECO850LCD standby UPS system is the ideal green solution for complete protection against blackouts, brownouts and power surges. Its 850VA/425-Watt power handling capacity supports entry-level PC systems for up to 45 minutes during blackouts. With a power efficiency rating of 99%, the ECO850LCD offers energy savings plus cooler operation by limiting UPS power consumption to less than 5 watts!

The ECO850LCD's interactive LCD screen displays operating conditions in real time and allows users to change settings and scroll through UPS information with ease. The ECO850LCD provides 6 battery-supported outlets for computer, monitor and other vital system peripherals, plus 6 surge suppression-only outlets for accessories not requiring battery support. Four of the surge-only outlets are ECO outlets that can be configured to automatically power off unused computer accessories like printers or multi-media speakers when the computer is not in use. Built-in single-line tel/DSL (RJ11) jacks protect a modem, fax machine or phone. One USB port (USB cable included) plus free PowerAlert software (available via Web download) enables unattended system shutdown without data loss in the case of an extended power failure. The ECO850LCD comes with $100,000 Ultimate Lifetime Insurance coverage for connected equipment (USA/Canada only) and a 3-year product warranty.

Key Features

ECO850LCD Standby UPS system Offers:

• Protects PCs and peripherals from downtime, damage and data loss due to power problems
• Saves up to $50 on annual energy costs
• Interactive LCD offers control options and UPS status conditions in real time
• Energy-saving ECO surge outlets automatically turn off idle equipment
• USB port works with free PowerAlert software for safe unattended computer shutdown and file saves

Ideal for Protection of Home or Office PCs and Peripherals

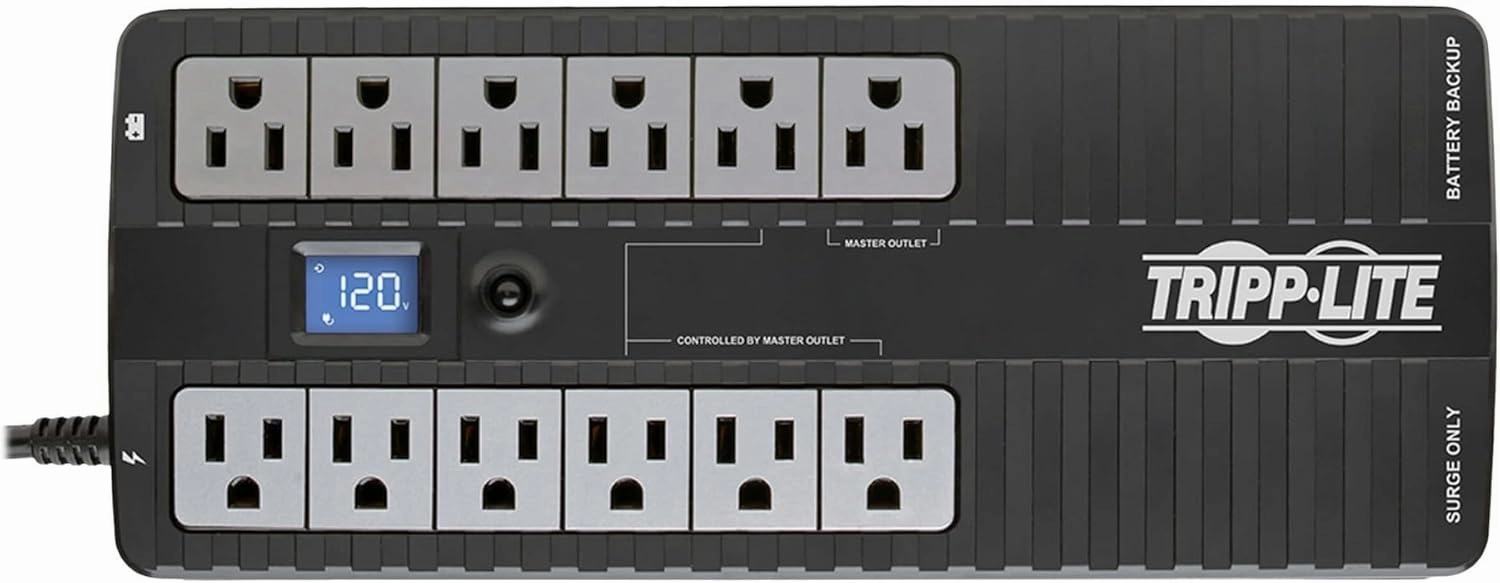

With reliable battery backup, tel/DSL jacks and an HID-compliant USB port, the ECO850LCD offers a complete power protection solution for a wide range of home and office electronics. The ECO850LCD features a split-outlet design with 12 total AC outlets: 6 to provide battery backup support and surge protection for computers, monitors and other critical components; 6 to provide surge protection only for peripherals such as printers and scanners.

Energy-Saving Design

Reduce your carbon footprint while providing annual energy savings of up to $50. The ECO850LCD includes 4 energy-saving ECO-outlets that can be configured to power down idle peripherals automatically when the computer is not in use. This UPS also features a full-load efficiency rating of 99% that limits UPS power consumption to less than 5 watts with only 17 BTU/hr. of heat output.

Interactive LCD Interface

The ECO850LCD features an interactive LCD interface that alerts you to potential power problems and provides total control of the UPS. Its simple scroll and select functions give users the ability to enable and disable specific UPS features, such as the ECO energy-saving feature, LCD brightness, permanent alarm silence and UPS self-test. The illuminated screen displays input voltage, output voltage, 5-bar battery charge level, estimated runtime, load percentage, load wattage, overload, ECO mode and on battery status at a glance.

Reliable Battery Backup

UPS battery backup support enables you to work through short power failures, and provides time to save files and perform an orderly system shutdown in case of a prolonged blackout. The ECO850LCD features an internal battery that provides 3 min. of battery support for a full load (425 watts), 13 min. for a half-load (210 watts) or 45 min. for a single PC. During normal operation, incoming utility power keeps the UPS battery fully charged so that backup power will always be available if needed.

Surge Suppression

A sudden power surge or spike can damage or destroy electronic components and wipe out irreplaceable data. The ECO850LCD features a 420-joule surge suppression rating to protect all connected components and the data they contain.

EMI/RFI Line Noise Filtering

Various electromagnetic and radio sources can cause disruptive interference on the AC line. This line noise is a common cause of incremental hardware damage, data corruption and audio/video performance problems. The ECO850LCD incorporates technology that filters out disruptive line noise, preventing it from affecting your equipment.

Signal Line Protection

The ECO850LCD includes one set of tel/DSL (RJ11) jacks to protect a standard dialup/DSL phone connection (user supplies RJ11 phone cable).

USB Port and Free PowerAlert Software

The ECO850LCD features an HID-compliant USB port (USB cable included). Used with Tripp Lite's free PowerAlert software (available from Tripp Lite as a Web download), this USB port enables safe unattended system shutdown and file saves in the event of a prolonged power failure. The USB port also enables integration with built-in power management and auto shutdown features of Windows® and Mac OS® X.

Environmentally Responsible

The ECO850LCD features a green-conscious design that conserves electricity, saves money and reduces CO2 emissions. This UPS system is manufactured in compliance with strict RoHS (Reduction of Hazardous Substances) guidelines to minimize the use of hazardous materials, and its internal battery is 100% recyclable.

Versatile Installation Options

The ECO850LCD features a space-saving, ultra-compact housing that fits on a desktop, a shelf or almost anywhere. Its 6-ft. power cord features a right-angle plug that allows furniture to be placed flush against the wall. The ECO850LCD's housing is equipped with integrated keyhole mounting slots for secure wall-mount installation.

Ultimate Peace of Mind

The ECO850LCD comes with $100,000 Ultimate Lifetime Insurance coverage for connected equipment (USA/Canada only) and a 3-year product warranty.

Technical Specifications

Tripp Lite ECO850LCD Standby UPS System

What's in the Box

• ECO850LCD UPS System
• USB Cable
• Owner's Manual
