Switches

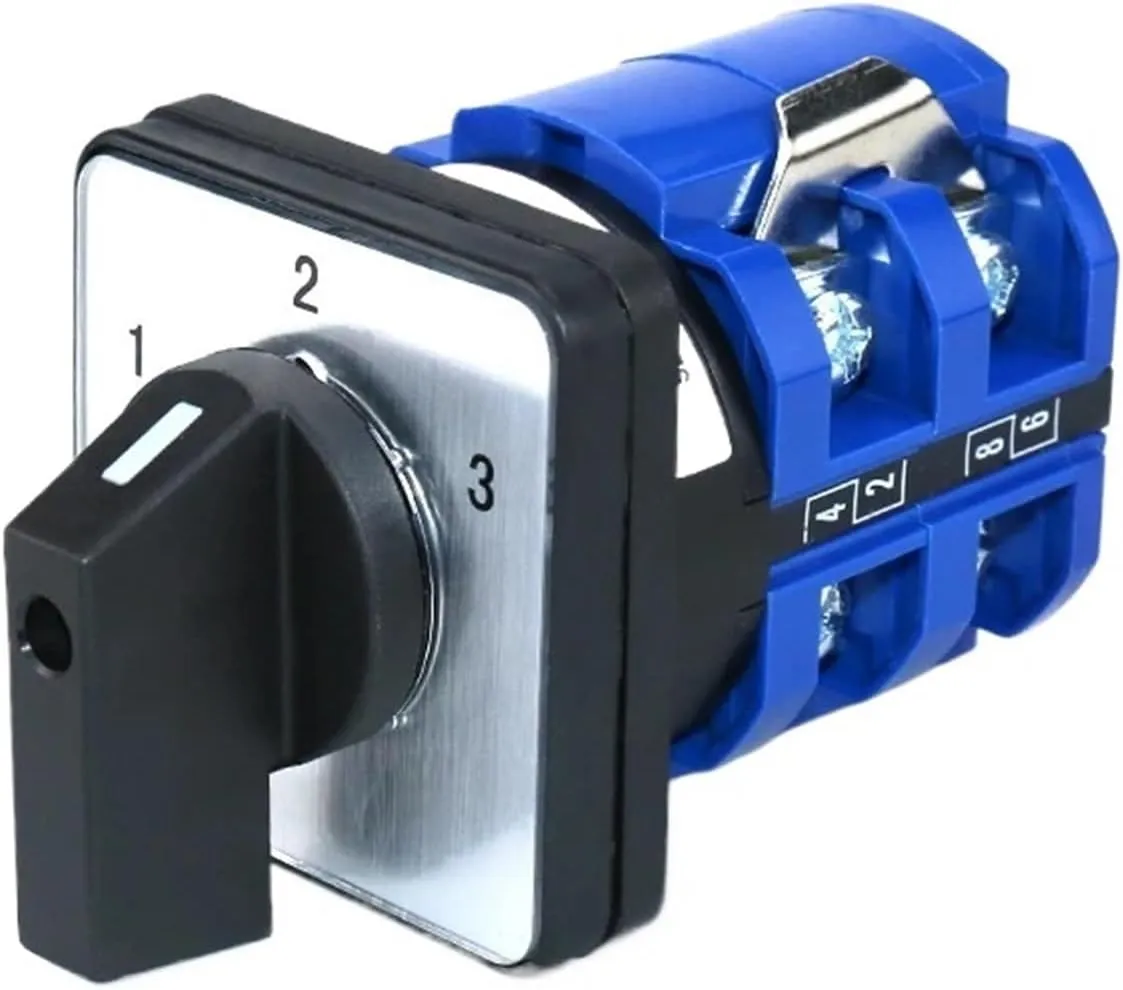

SZW26/LW26-63 63A 1-2-3 3 Position 2 Phase 8 Terminals Electrical Ganrator Universal Rotary Changeover Cam Switch
==========
Current : 63A
Material : Plastic
Switch Type : Universal Switch
Model Number : SZW26-63/1-3.2
Features : 2 phase
Item Type : SWITCHES
Is Smart Device : No
Rated working voltage(Ue) : AC240V AC440V
Rated insulation voltage(Ui) : 660V
Rated impulse withstand voltage(Uimp) : 4kV
Conventional heating current(Ith) : 63A
Use category 1 : AC-23A
Rated working current(Ie) 1 : 57A
Use category 2 : AC-3
Rated working current(Ie) 2 : 36A
Use category 3 : AC-4
Rated working current(Ie) 3 : 15A
Rated short-time withstand current(Icw) : 684A/1S
Rated short-circuit making capacity(Icm) : 964A
