Introduction of the motor
1. Name of the motor : 20GA180 encoder dc geared motor in dc motor
2. Rated voltage have DC 12V
3. DC 12V . You can choose the no load speed have :
24rpm/30rpm/38rpm/50rpm/60rpm/100rpm/150rpm/200rpm/380rpm/480rpm
Rated torque between 0.43 To 6 KG.CM. Stall torque: between 1.75 To 8.7 KG.CM, it is recommended that your project load not exceed the rated torque. select a no load speed in DC 12V, there will be corresponding rated torque and stall torque, please refer to the parameter table below.
4. Low noise
5. Direction of rotation of the motor: CW Or CCW, Support Reversed.
Control the clockwise or counterclockwise rotation of the motor by changing the way the positive and negative electrodes are connected
6. The shaft shape of the motor : D type, please refer to the size chart below for all dimensions of the motor.
7. Gear material: Metal gears make the motor last longer
8. The speed of the motor can be adjusted using the speed controller.
9. This motor is suitable for a variety of micro-automation equipment. As long as you confirm that the motor voltage and torque of your choice are suitable for the voltage and load of your project before purchase, there is no limit to the scope of use of this motor.
For example, electric toys. robots. curling irons. smart door locks, etc.
Line Wiring Method
1 ( ) Red line: positive pole of the motor
2 (G) Black line: encoder power negative, 3.3-5V
3 (B) Black line: signal line 3PPR
4 (A) Black line: signal line 3PPR
5 (V) Black line: encoder power positive, 3.3-5V
6 ( - ) Black line: the negative pole of the motor
The parameter table of the motor
The size is for reference only, the measurement will be slightly different,please pay attention before buying

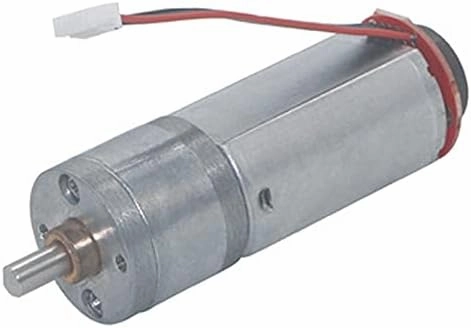

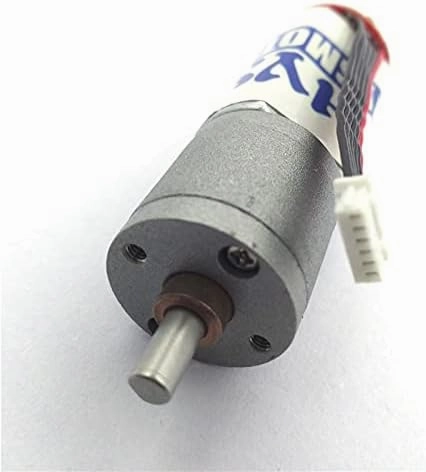

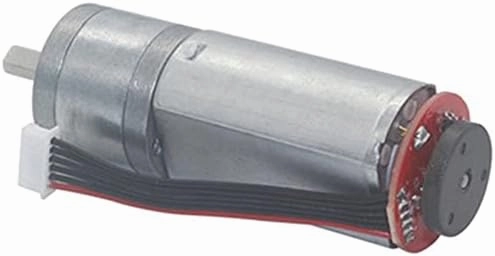

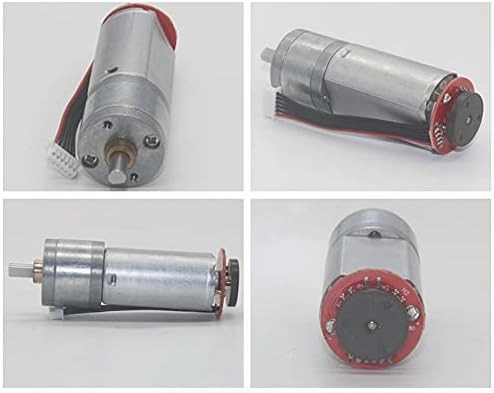

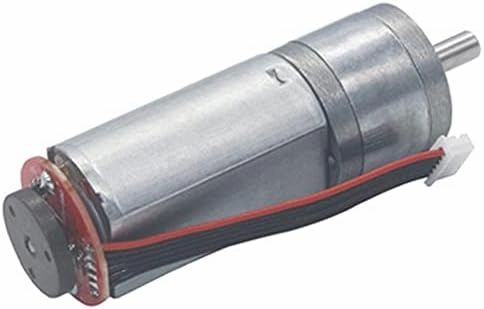

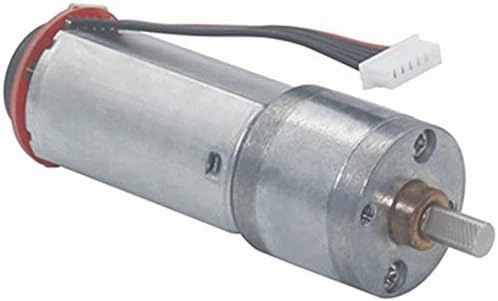

The following is the picture of the motor
Application
Item specifics:
Torque: 0.43-6 KG.CM
Usage: BoAt,car,Electric Bicycle,Fan,Ho
