- 1.Strong compatibility, whether it is the program or mechanical structure for standard building blocks, as far as possible compatible processing;
- 2.Stall torque (at locked): 4.8V 11±0.1kg-cm6V 13±0.1kg-cm, Stall current (at locked): 4.8V 2000±30mA 6V 2200±30mA;
- 3.Operating speed (at no load): 4.8V 0.12±0.01sec/60° 6V 0.11±0.01sec/60°,Running current (at no load): 4.8V 220±20mA 6V 250±20mA;
- 4.It can be used in aircraft models, remote control, robots and other occasions where the angle needs to be controlled, with large torque and quick response;
- 5.55g Servo ,control is simple, Supply Voltage:DC4.8V / DC6V, 3Pin 2.54mm DuPont cable Header.
Overview:
The product can control the rotation speed and direction of the output shaft. It is made of environment-friendly POM plastic, which is small, light and not easy to be damaged.
The internal integrated reduction gear can increase the torque and is suitable for programmable biped robots, manipulators,
remote control ships, and models of 50-90 methanol fixed wing aircraft and 26-50cc gasoline fixed wing aircraft.
Specifications:
Supply Voltage: DC4.8V / DC6V
Operating speed (at no load): 4.8V 0.12±0.01sec/60° 6V 0.11±0.01sec/60°
Running current (at no load): 4.8V 220±20mA 6V 250±20mA
Stall torque (at locked): 4.8V 11±0.1kg-cm6V 13±0.1kg-cm
Stall current (at locked): 4.8V 2000±30mA6V 2200±30mA
Idle current (at stopped): 4±1mA
Weight: 55g
Storage Temperature Range: -20℃～60℃
Operating Temperature Range: -10℃～50℃
Control system: Change the pulse width
Amplifier type: Analog controller
Operating travel: 90±3°(in 1000→2000μsec)
Left&Right travelling: ≤3°
Centering deviation: ≤1°
Neutral position: 1500μsec
Dead band width: ≤5μsec
Rotating direction: Counter Clockwise (1500→1000μsec)
Pulse width range: 800→2200μsec
Maximum travel: About 145°(in 800→2200μsec)
Connect Wire Definitions: Red lead -VCC, Brown lead -GND,Yellow lead -PWM
Package contents:

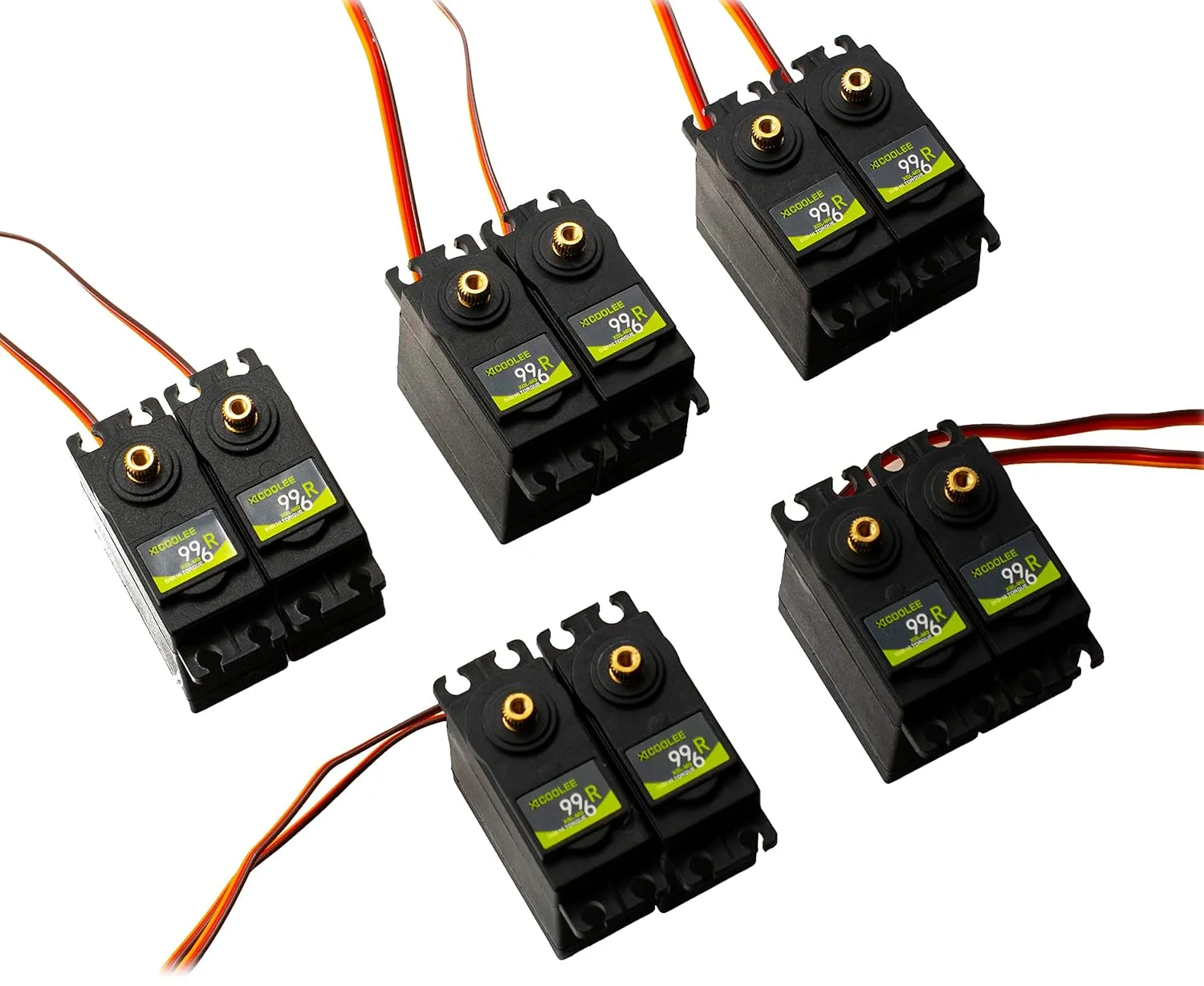

1.MG-996 Micro Servo motor×10
- Package Dimensions : 8.26 x 7.87 x 1.38 inches; 1.94 ounces
- Date First Available : November 21, 2022
- Manufacturer : XICOOLEE
- Country of Origin : China
