Specifications:

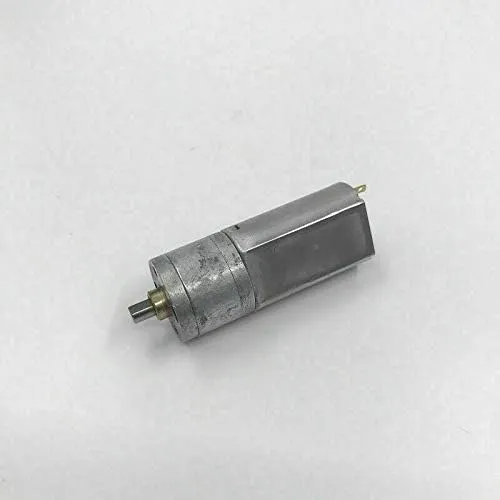

The new bulk 180 geared motor is characterized by high torque and high speed. However, due to the bulk, the motor and the gearbox have wear and scratches on the outside of the gearbox. The rear cover of the motor will be slightly rusted.
Motor size: 20*15.5*32mm
Gearbox size: 19.8*17mm
Motor shaft diameter: 4mm (flat shaft thickness is about 2.9mm)
Motor shaft length: 5mm
Step diameter: 7mm
Step height: 3mm
Fixed aperture: 2.25mm
Fixed hole distance: about 15.7mm
Product parameters:
1.5V speed 25 rev / min no load current 38mA
3V speed 49 rev / min no load current 40mA
6V speed 98 rev / min no load current 50mA
9V speed 148 rev / min no load current 60mA
Package includes:
Gear Motor x 1pcs
Item specifics:
Torque: No clear
Usage: Home Appliance,Other
Model number: Micro gear motor
Output power: Not clear
Continuous current(a): Not clear
Protect feature: Explosion-proof
Commutation: Brush
Construction: Permanent Magnet
Efficiency: Other
Type: Gear Motor
Certification: CCC,ce
Origin: Mainland China
Output shaft diameter: 4mm (flat shaft thickness is about 2.9mm)
Shaft length: 5mm
