Motors
Tips:
The applicable voltage of each motor is 3V-12V. In this voltage range, the higher the voltage,
the higher the speed, the greater the . Model A has the slowest speed and the largest . Model F has the fastest speed and the smallest .
Specification:
1.Reduction ration:
Model A(1030:1), Model B(603:1), Model C(302:1), Model D(236:1), Model E(118:1), Model F(42:1)
2.Voltage range: 3V-12V
3.Weight : 13g
4.Speed error: ±10%
<;BCD
6.: A>B>C>D>E>F

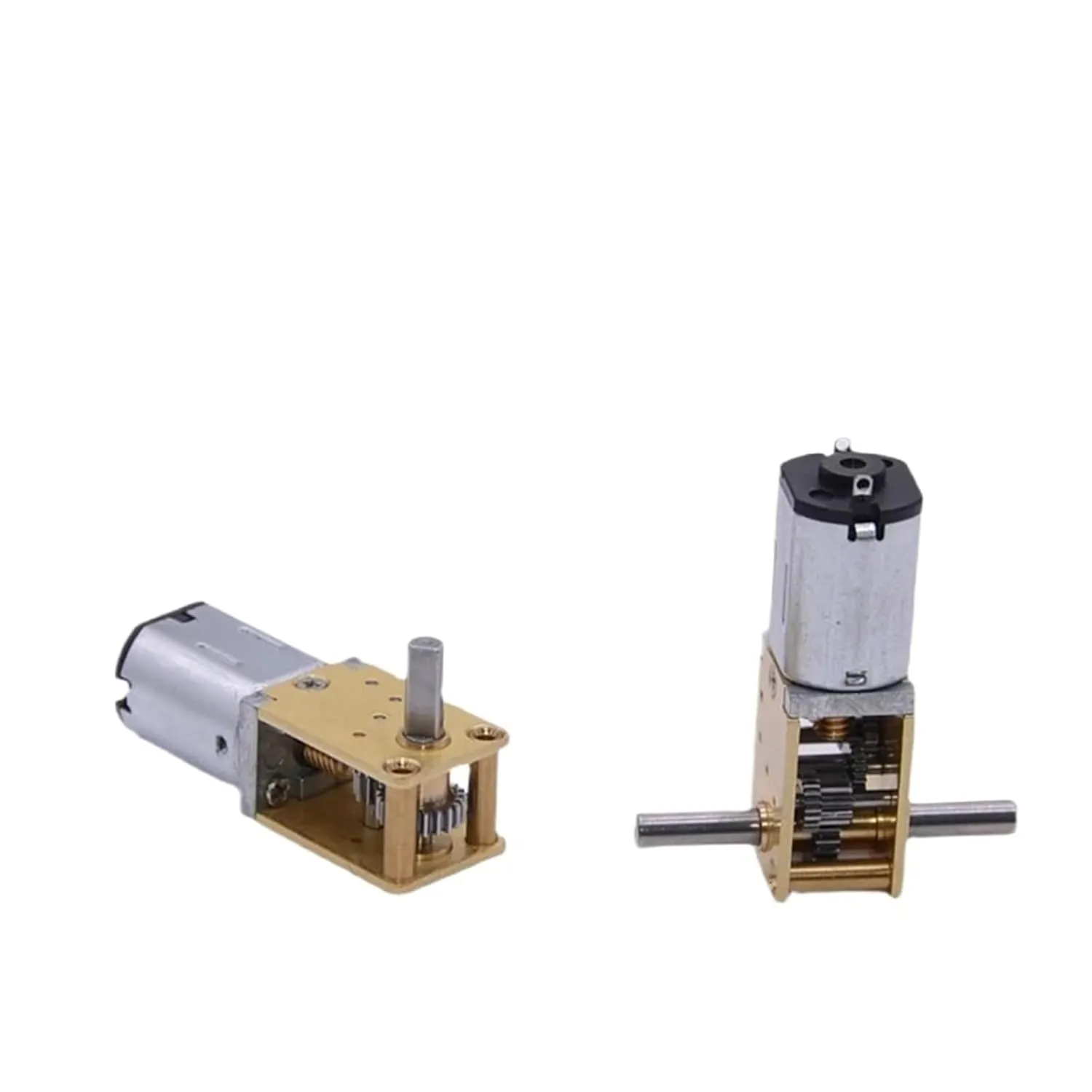

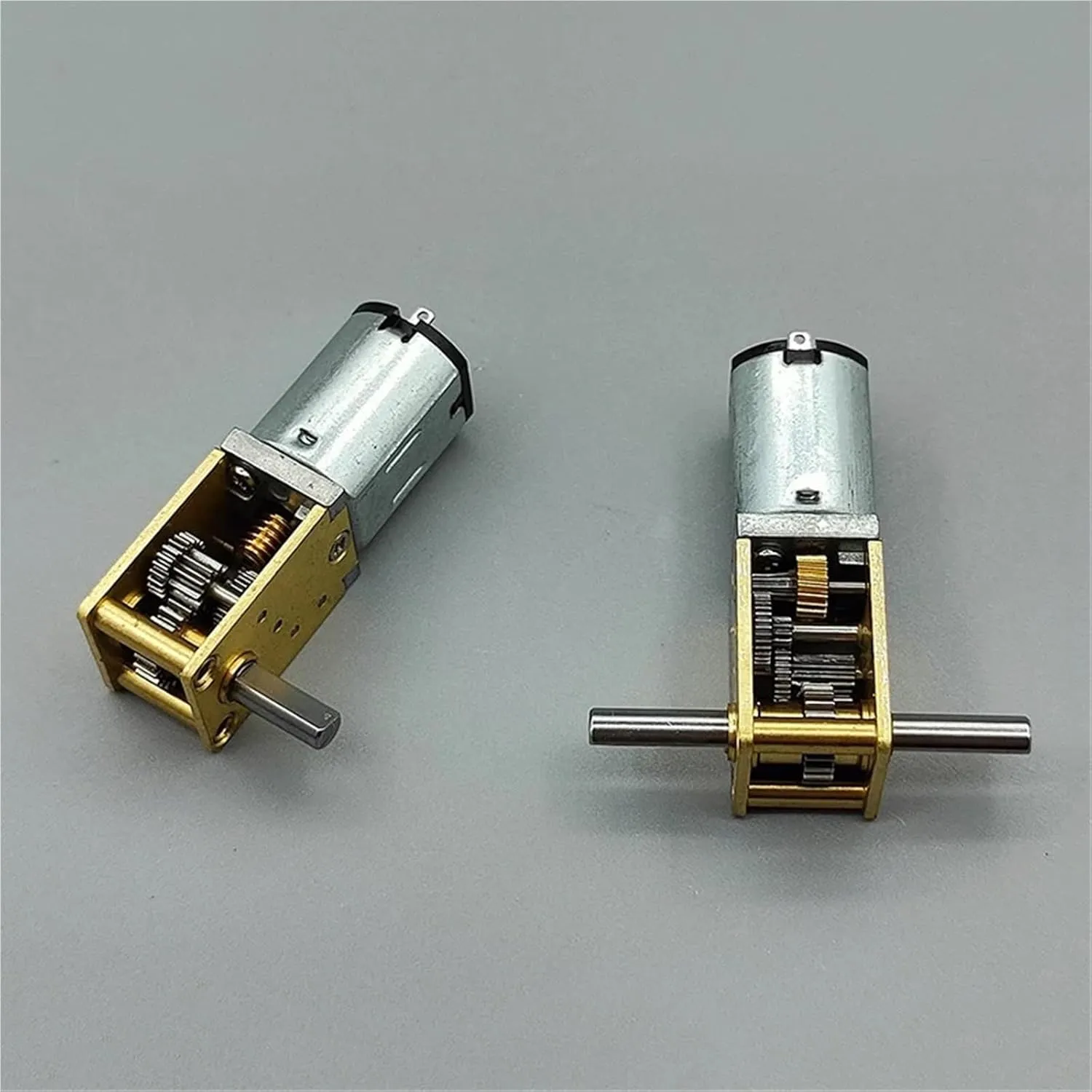

7.Shaft length: 7.5mm(Single Shaft); 10mm(Dual Shaft)
8.Shaft diameter:3mm(2.5mm D Shaft)
Package List:

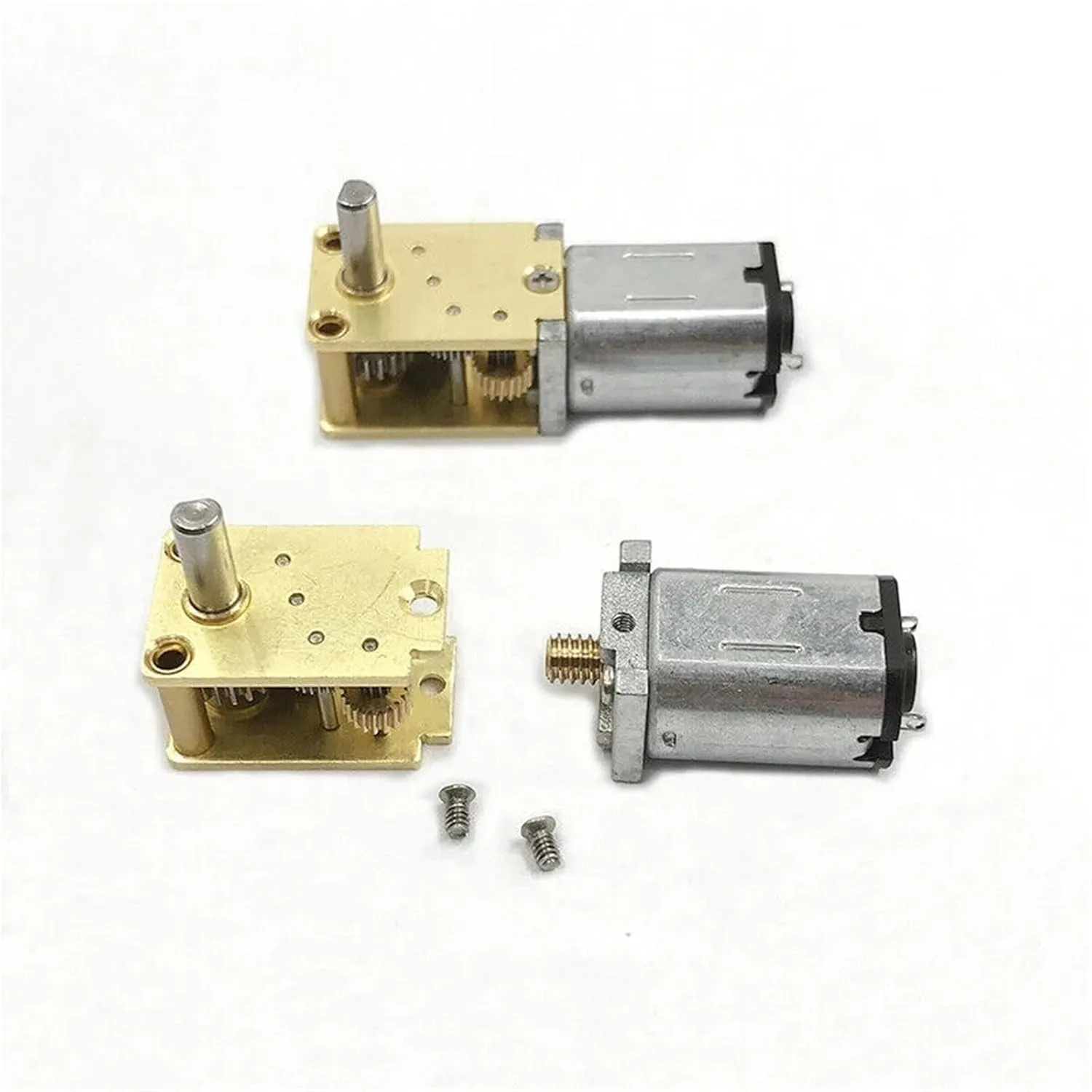

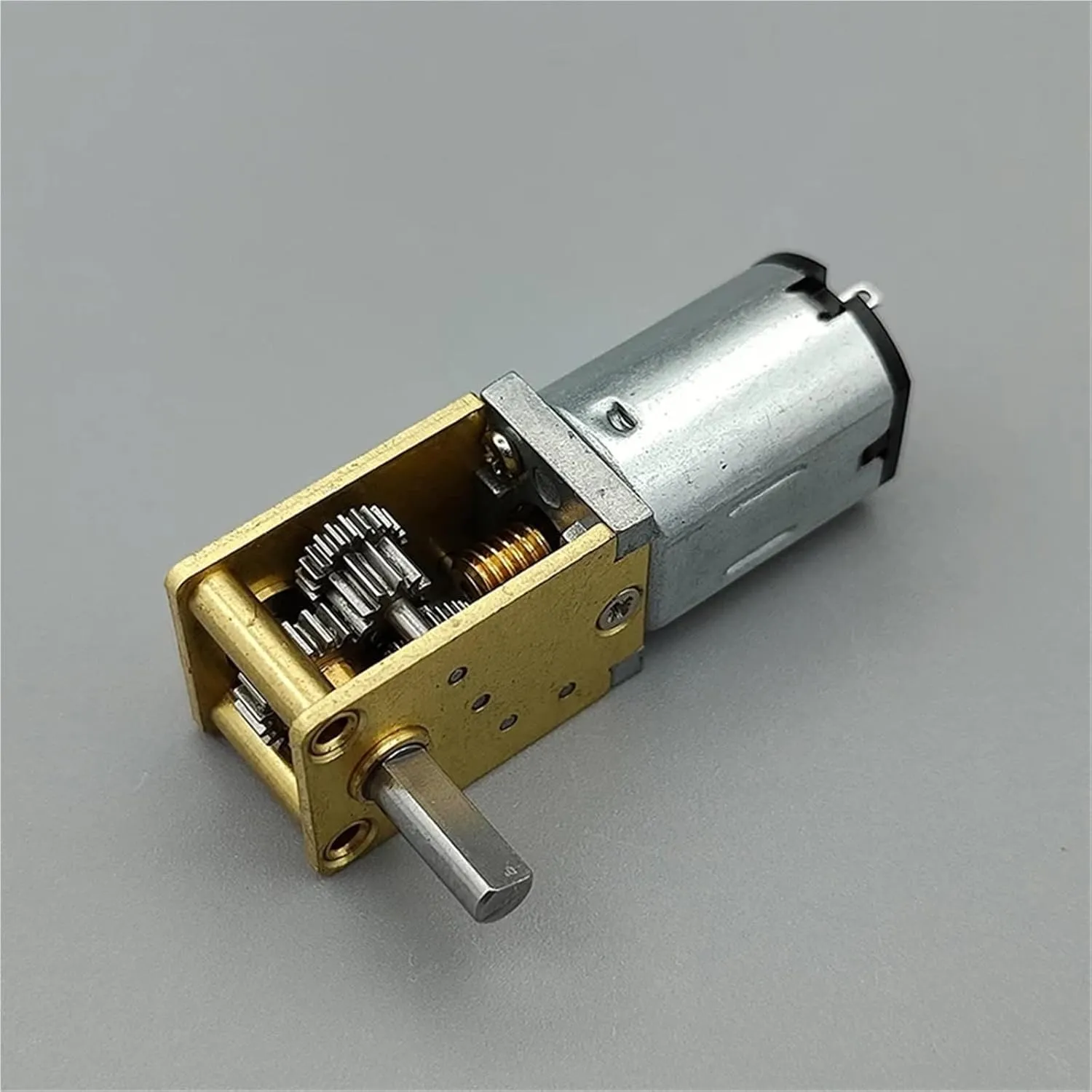

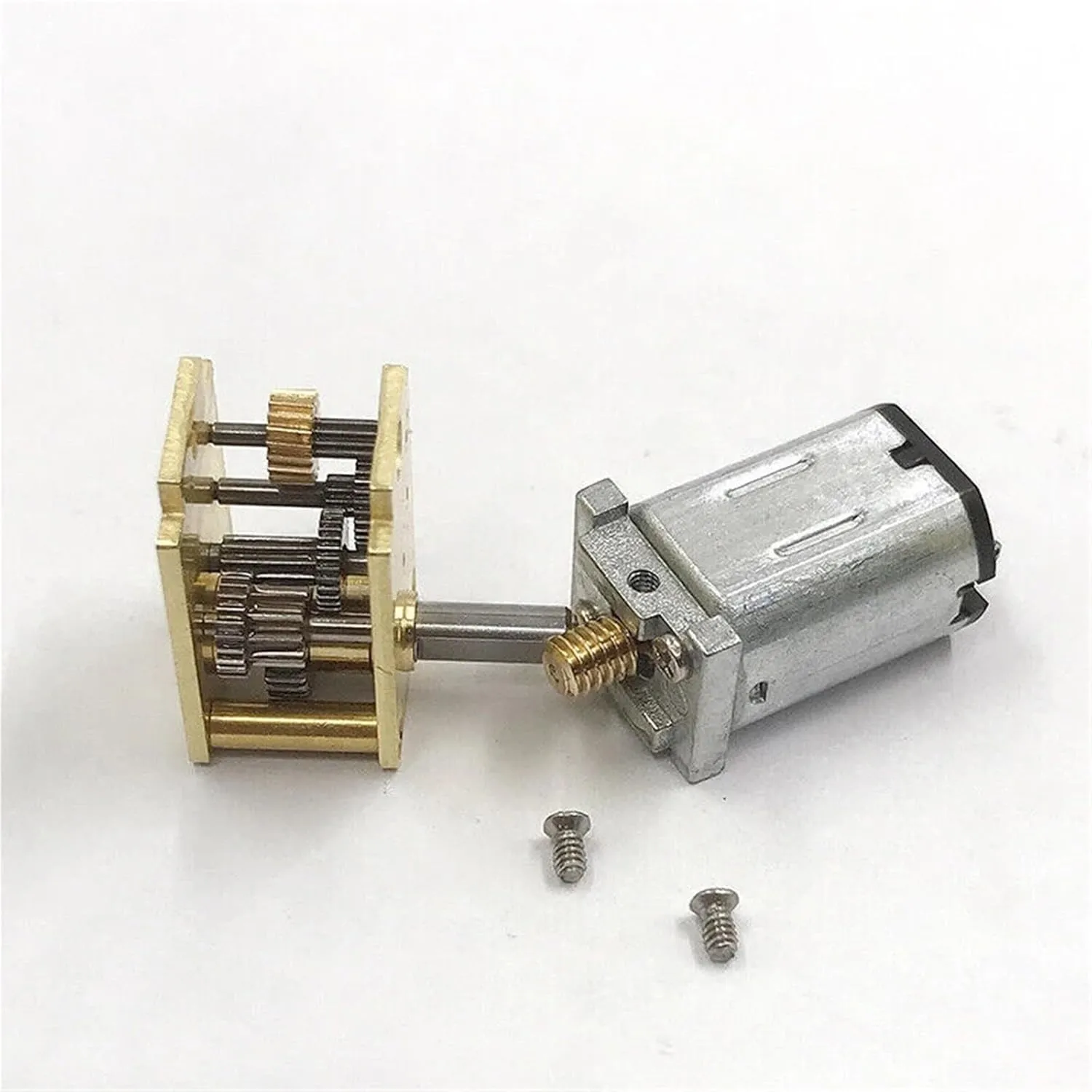

Mini Gear Motor x 1PC
N30 Full Metal Gear Motor:
==========
Hign-concerned Chemical : None
Model Number : GA12-N20
Construction : Permanent Magnet
Type : Gear Motor
Protect Feature : Explosion-proof
Commutation : Brush
Efficiency : IE 1
Use : Home Appliance
Voltage range : 3V-12V
No-load speed range : 4RPM-381RPM
Weight : 13g

• Package Dimensions ‏ : ‎ 11.81 x 7.87 x 3.94 inches; 1.76 ounces
• Department ‏ : ‎ unisex-adult
• Date First Available ‏ : ‎ June 14, 2025
• Manufacturer ‏ : ‎ ILQMEHV
• Country of Origin ‏ : ‎ China
